Uninstall Gen3

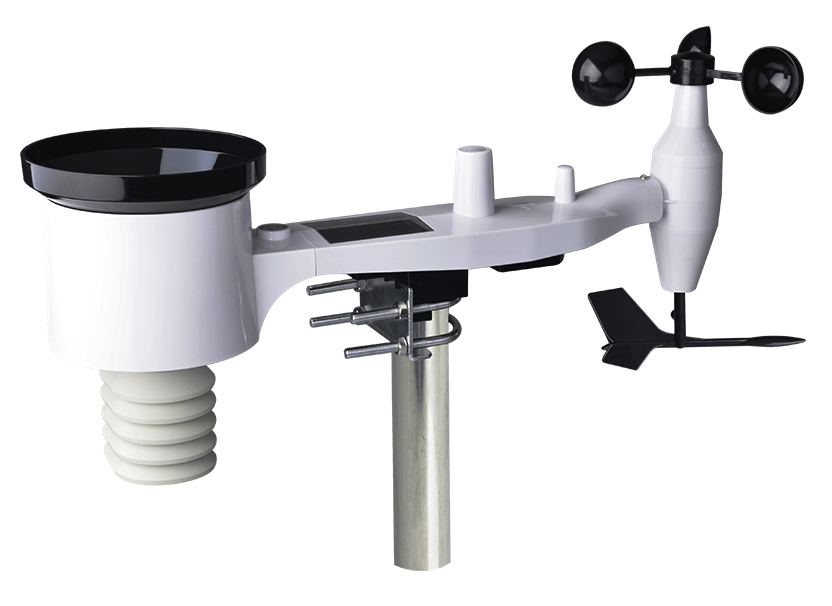

Uninstalling and storing your Ukko Gen3 weather station

Temperatures below -15°C / 5°F can permanently damage your weather station. The following instructions will help keep your weather stations safe while not in use during the winter.

Overview of Steps

  • Remove all batteries and store in a warm, dry location
  • Disassemble and store sensor, gateway, solar panel in a dry location above -15°C / 5°F
  • In the ForeSite app, go to Station Management, select the station on the map, and tap Uninstall.

Disassembling the weather station

You will need:

  • Phillips #2 screwdriver
  • Slotted 5.5mm screwdriver
  • Adjustable wrench or 8mm nut driver
  • A container to store screws, nuts, washers, and u-bolts
  • A container to store batteries. Properly store all batteries per manufacturer’s instructions.

Sensor Unit

  1. Remove the sensor unit from the mounting post by loosening the U-bolts and sliding the sensor off the post

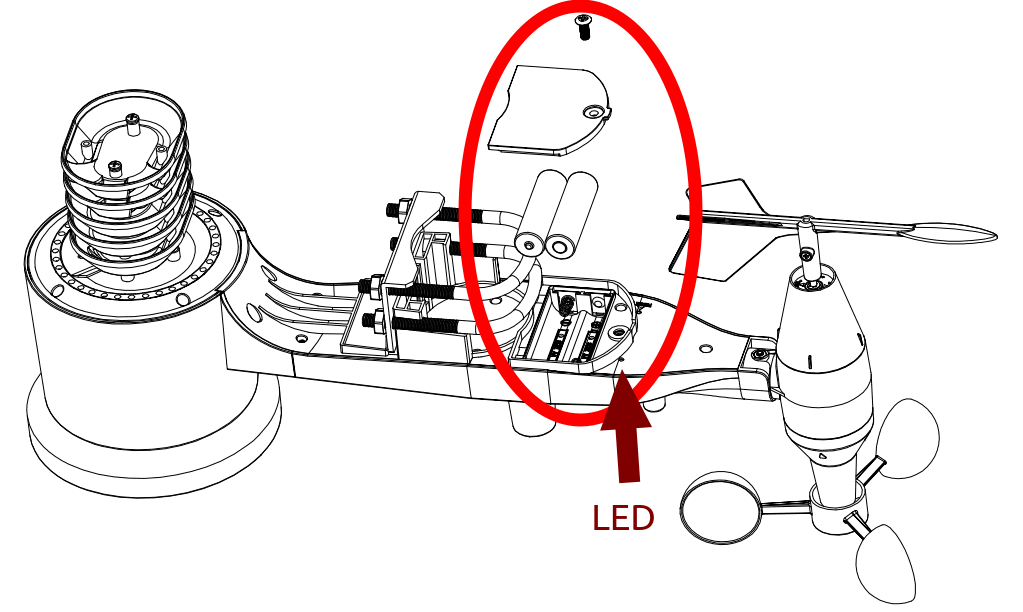

  2. Important: remove the two AA batteries by unscrewing the sensor’s battery cover, removing the batteries, and reattaching the battery cover

Gateway & Solar Panel

  1. Remove the gateway and solar panel from the post by loosening the hose clamp and sliding the assembly off.
  2. Unscrew the male and female cable connection between the gateway and solar panel
  3. (Optional) remove the gateway from the solar panel by unscrewing the two pan-head screws
  4. Important: remove the pink gateway battery:

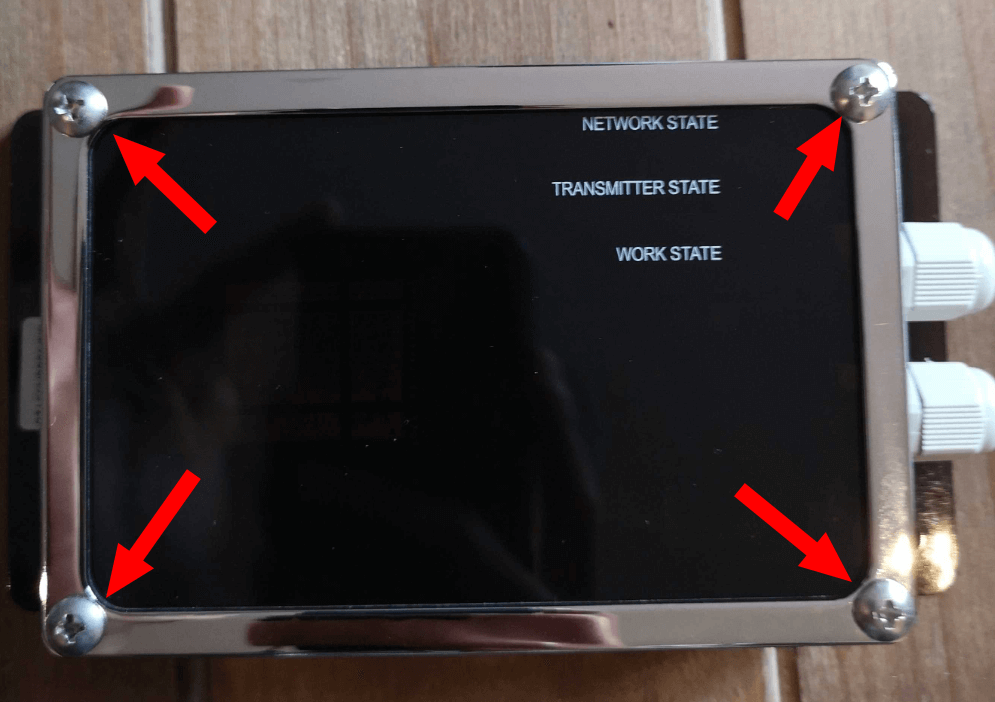

    1. Unscrew the four pan-head screws and removing the gateway face cover
    2. Remove the pink 18650 Li-ion battery from the gateway
    3. Reattach the gateway cover with the four screws

Storing for the winter

  1. Store batteries in a warm, dry container
  2. Store sensor, gateway, and solar panel in a warm, dry location
  3. Store all other hardware (arms, U-bolts, screws, nuts, etc) securely

Uninstall in the app

  1. Open the ForeSite app
  2. Tap Station Management
  3. Select the station in the map
  4. Tap Uninstall and confirm.
